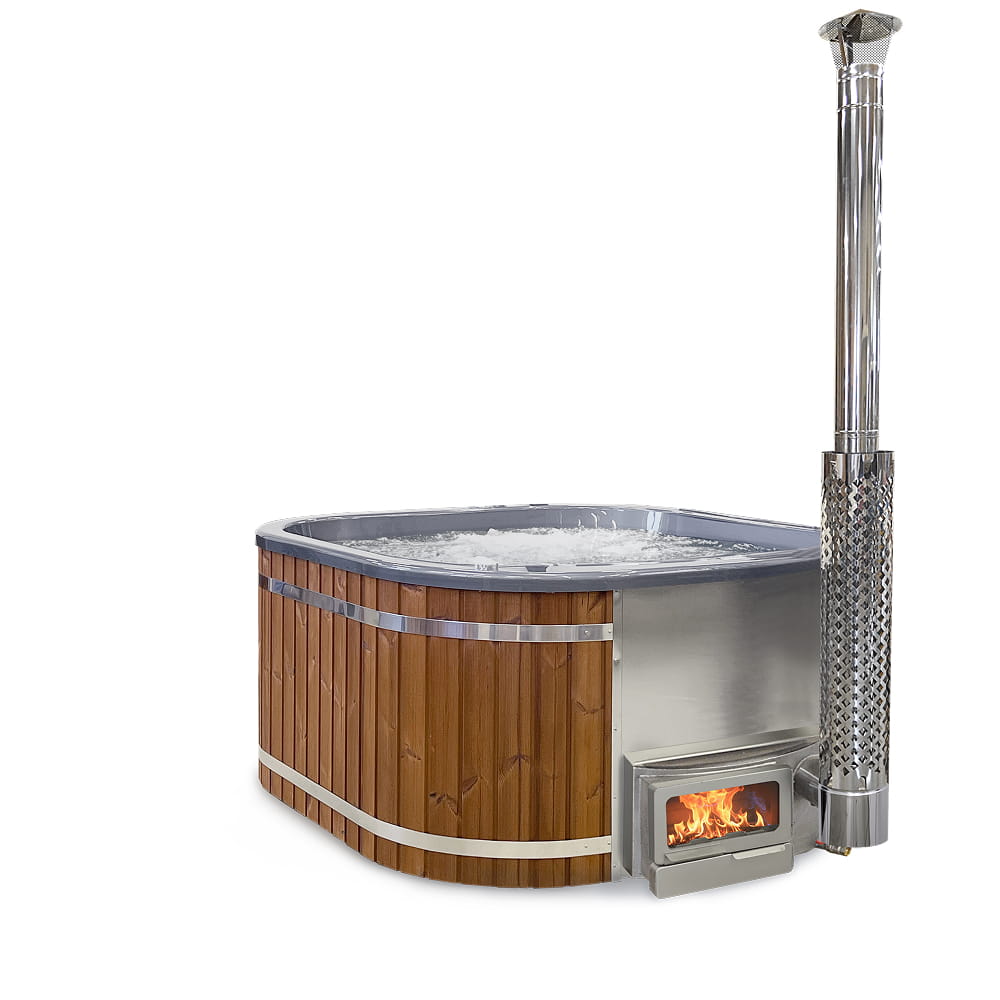

• Wood-fired hot tub with wooden exterior and Horizon stove on a white background
1 1

Configure Square Wood Fired Hot Tub | Custom Jets Massage | 4-8 | Horizon heater

Configure Square Wood Fired Hot Tub | Custom Jets Massage | 4-8 | Horizon heater

From 4'208.00
From 4'208.00
-0%

excl. VAT

Sale Sold out

Delivery from 6 weeks. Free delivery.

Configure & Save: 10% OFF hot tubs over £6,000. Use code GARDENVITY10 at checkout.

Our configurable hot tubs let you personalise every detail — and we reward that flexibility with lower individual component prices, using the same premium parts as in our pre-configured sets.

The starting price includes the following:

  • 4-8-seater hot tub  (£ 3200)
  • ThermoWood cladding  (£ 450)
  • Integrated heater Horizon (stainless steel AISI 304) with chimney flue, 2 m (6’6”)  (£ 750)
  • Standard steps (£ 110)
  • Tightening bands  (£ 110)
  • Chimney protection & heat shield for the connection transition  (£ 145)
  • Chimney cap with ash catcher  (£ 40)
  • Hose connectors (£ 20)
  • Curbside delivery in mainland England (additional charges apply for Scotland)

Select or upgrade additional hot tub equipment in the configurator.

SKU: H-71-Conf-S-180-Horizon

GTIN: 4779060101984

From 4'208.00
From 4'208.00
-0%

excl. VAT

Sale Sold out

Delivery from 6 weeks. Free delivery.
  • Apple Pay
  • Bancontact
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
50% payment option icon 100% payment option icon
  • 50% Advance Payment
  • 100% Advance Payment
View full details

Learn about components and accessories related to this hot tub

Open wooden enclosure revealing pool pump system with filter, piping, and control panel inside a timber cabinet

Premium Sand Filter

Inserts – Fiberglass & Acrylic Liners

Inserts – Fiberglass & Acrylic Liners

Evening view of person relaxing in illuminated round hot tub with blue LED lights and bubbling water

LED Lights

Close-up of wooden side tray with two pink champagne flutes and two grey towels on wood-fired hot tub exterior

Advanced shelf

Photo showing different step designs—standard, curved, and fully cladded curved

Types of stairs

Hot Tub Cover

Hot Tub Cover

Accessories Guide

Accessories Guide

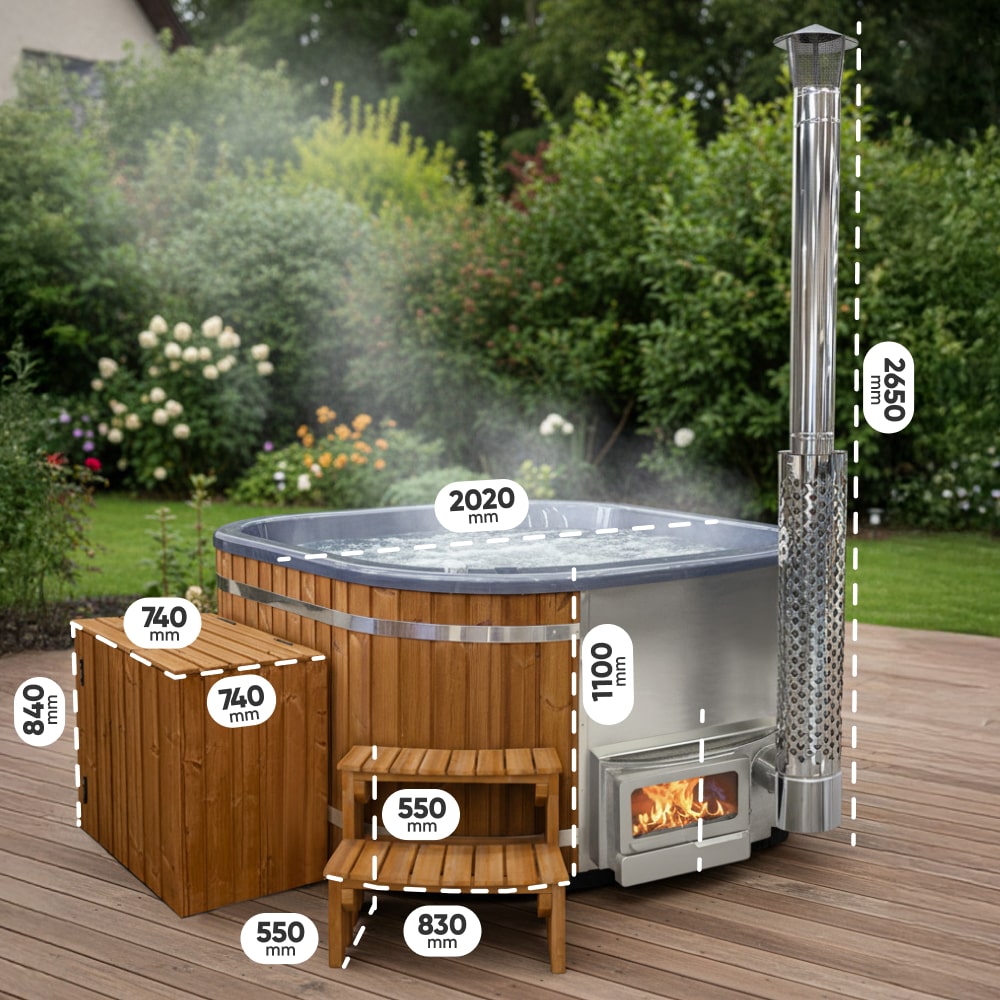

  • Outdoor view of wood fired hot tub with stainless steel stove, wooden steps, tall chimney, and wooden storage box on patio

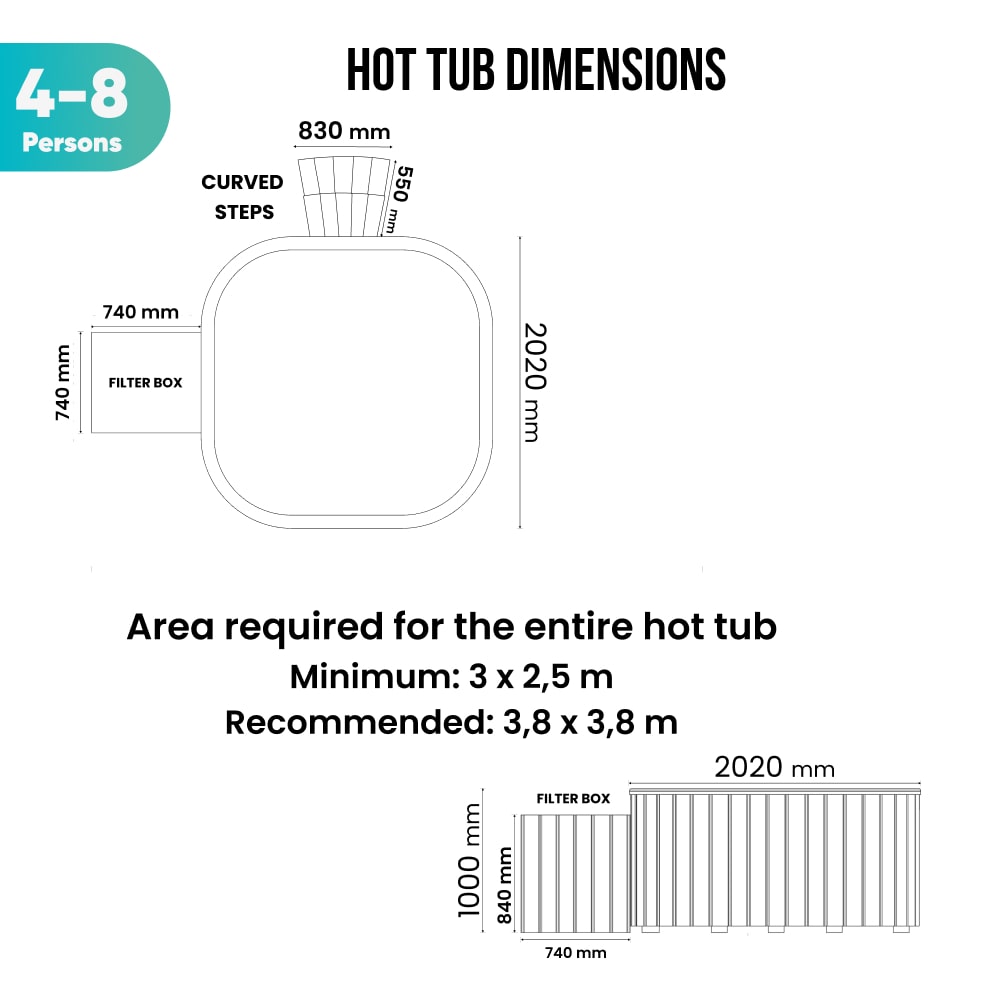

  • Top and side schematic showing dimensions and area requirements for a wood fired hot tub with curved steps and filter box

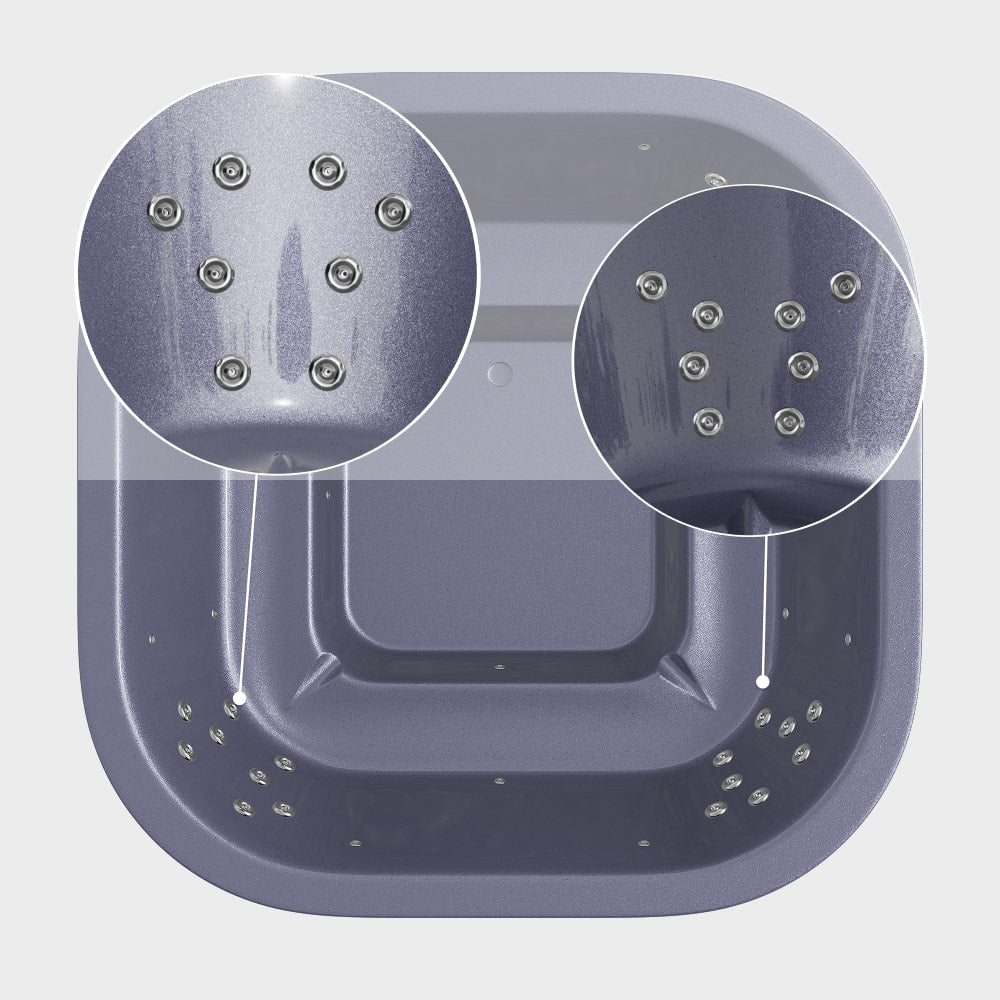

  • Top-down view of premium whirlpool hot tub with 28 hydro jets and two zoomed-in sections showing jet placements inside tub

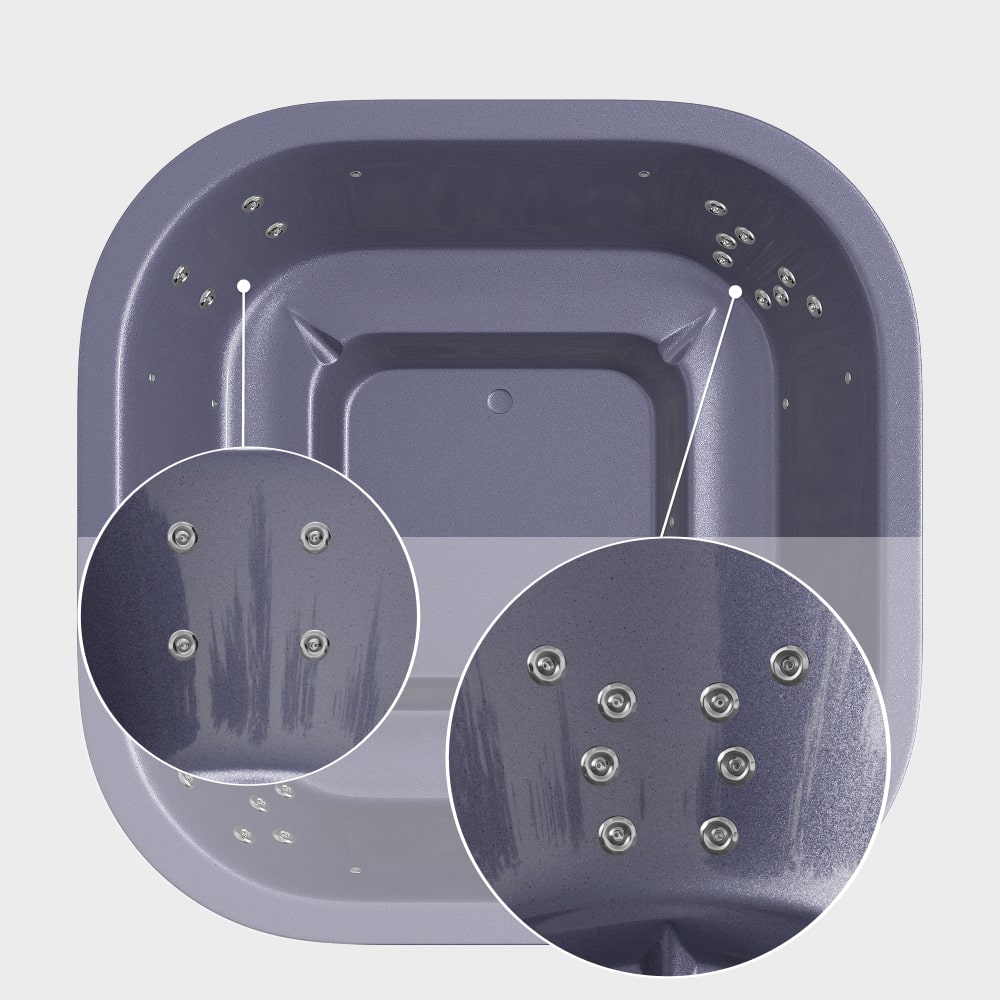

  • Top-down view of premium 4-8 seater whirlpool with 28 hydro jets and integrated Horizon stainless steel wood stove
Close-up of pool filtration system inside a wooden enclosure.

Why the premium filter is the best choice

Discover the advantages of our Premium three-stage filtration system for a perfectly clean, energy-efficient hot tub.

Read more about Premium Filter

Specifications

Technical data of the product

External dimensions (L, W, H): 2020 x 2020 x 1000 mm.
Internal dimensions (L, W, H): 1800 x 1800 x 880 mm.

Standard step dimensions (L, W, H): 625 x 500 x 530 mm.
Curved steps dimensions (L, W, H): 840 × 550 × 550 mm
Dimensions of fully cladded curved steps (L, W, H): 695 x 1027 x 600 mm.

Water supply

Capacity: 1600-1800 L.
Water drain valve diameter: 25.4 mm.

Size

Minimum base size: 3000 x 2600 mm.
Recommended base size: 3900 x 3900 mm.

Technical data for delivery

Packaging type: 2 Euro pallets 1200 x 800 mm.
Packaging weight: 300-350 kg.
Packaging dimensions (error tolerance +/- 100 mm), L, W, H: 2150 x 1150 x 2250 mm. Filter box package: 750 x 770 x 950 mm.

Type of heating and fuel

The main material of the oven: food-grade 18/8 stainless steel AISI Grade 304 / 316.
Fuel: Dry softwood or a mixture of softwood and hardwood in equal proportions.
Heating time: approx. 3,5 - 4 hours at +2 °C outdoor temperature
Approximate heating output: 20 kW.

Security warning

Children must be supervised by an adult at all times when using a hot tub. Please read and follow all enclosed safety instructions.
